Durable Construction 90t Hydraulic Mobile Crane, QY90k XCMG Truck Crane

Name: Durable Construction 90t Hydraulic Mobile Crane QY90k XCMG Truck Crane
Brand: XCMG
Price: 1 USD

China Durable Construction 90t Hydraulic Mobile Crane, QY90k XCMG Truck Crane factory

Place of Origin : China

Brand Name : XCMG

Certification : CE

Model Number : QY90K

MOQ : 1pc

Price : negotiate

Packaging Details : Ro-Ro

Delivery Time : 30-50 days

Payment Terms : 30% deposit, balance before shipment

Supply Ability : 10000pcs/year

Model : QY90K

Max.rated capacity : 90t

Engine model : TAD720VE OM457LAIII/9

Total weight in travel : 53000kg

Contact Now

Durable Construction 90t Hydraulic Mobile Crane, QY90K XCMG Truck Crane

Feature

• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• The working condition expands twice. Newly add 5t counterweight.

Technical Parameter

Dimension	Unit	QY90K
Overall length	mm	14700
Overall width	mm	2800
Overall height	mm	3900
Weight
Total weight in travel	kg	53000
Front axle load (axle 1, 2, 3)	kg	9000/9000/13000
Rear axle load (axle 4, 5)	kg	13000/9000
Power
Engine model		TAD720VE OM457LAIII/9
Engine rated power	kW/(r/min)	174/2300 315/1900
Engine rated torque	N.m/(r/min)	845/1400 2100/1100
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	23
Min. ground clearance	mm	315
Approach angle	°	20
Departure angle	°	16
Max. grade ability	%	45
Fuel consumption for 100km	L	60
Main performance
Max. rated total lifting capacity	t	90
Min. rated working radius	m	3
Turning radius at turntable tail	m	4.51
Max. lifting torque	kN.m	3234
Base boom	m	12.3
Fully extended boom	m	55
Fully extended boom+ jib	m	71
Longitudinal outrigger span	m	7.5
Lateral outrigger span	m	7.1
Working speed
Boom luffing time	s	75
Boom full extension time	s	600
Max. swing speed	r/min	≥2
Max. speed of main winch (single rope) (no load)	m/min	≥120
Max. speed of aux. winch (single rope) (no load)	m/min	≥85

The specification is subject to change without notice.

Product Tags:

hydraulic truck crane

cargo crane truck

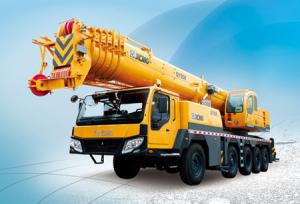

Durable Construction 90t Hydraulic Mobile Crane, QY90k XCMG Truck Crane Images
