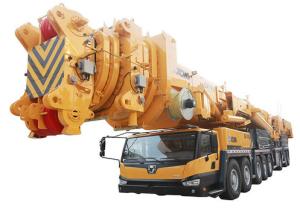

Hydraulic QAY800 mobile lift crane Durable 7- segment All Terrian

Xuzhou Truck-Mounted Crane Co., Ltd

Hydraulic QAY800 mobile lift crane Durable 7- segment All Terrian

  • 1
  • 2

Brand Name : XCMG

Model Number : QAY800

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : negotiate

Payment Terms : 30% deposit, balance before shipment

Supply Ability : 10000pcs/year

Delivery Time : 20 days

Packaging Details : Ro-Ro

Overall weight in transport : 96000kg

Max. rated total lifting capacity : 800t

Fully extended boom : 85m

Engine rated power : 260/1800 480/1800kW/(r/min)

Engine : OM460LA.E3A/5 OM502LA.E3B

Contact Now

Hydraulic QAY800 mobile lift crane Durable 7- segment All Terrian

Features:

QAY800 adopts 7-segment oval boom, the length is 84m. The boom can be separated into two parts. After dismantling the 5th-7th segments and installing a 2.5m independent boom head, the length of the boom is 52m, forming a 4-segment short-boom product; on that basis, installing the tower boom will improve the performance of the super-lift, which is specially designed for lifting the 2MW wind power.

QAY800 adopts 8-axle chassis, full-wheel steering, and X outrigger structure. The front and back swing can be realized by the cylinder. The lateral outrigger span is 13m.

To transfer the machine flexibly and facilitate the assembling and disassembling of the boom, the boom is added a self-assembling and self-disassembling device which is controlled by the independent power producer. The weight of QAY800 in travel is 96t, carrying all the outriggers and the whole turntable. The boom is transported independently.

Parameter

Dimension Unit QAY800
Overall length mm
Overall width mm
Overall height mm
Weight
Overall weight in transport kg 96000
Front axle load kg
Rear axle load kg
Power
Engine model   OM460LA.E3A/5
OM502LA.E3B
Engine rated power kW/(r/min) 260/1800
480/1800
Engine rated torque N.m/(r/min)
Travel
Max. travel speed km/h
Min. turning diameter m ≤30
Min. ground clearance mm
Approach angle °
Departure angle °
Max. grade ability %
Fuel consumption for 100km L
Main performance
Max. rated total lifting capacity t 800
Min. rated working radius mm
Turning radius at turntable tail m
Max. lifting torque kN.m
Base boom m
Fully extended boom m 85
Fully extended boom+ jib m
Longitudinal outrigger span m
Lateral outrigger span m
Working speed
Boom luffing time s
Boom full extension time s
Max. swing speed r/min
Max. speed of main winch (single rope) (no load) m/min
Max. speed of aux. winch (single rope) (no load) m/min

The specification is subject to change without notice.
